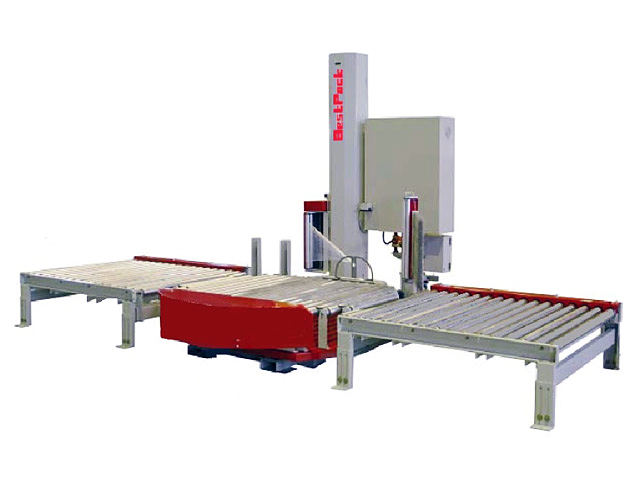

Stretch Wrappers
S300-FA
Conveyorized
Automatic
Pre-Stretch Up To 300%
40-50 Loads/Hour
The wide range of CBM System's automatic stretch wrapping systems offer you high performance, durability, economy, and maximum versatility to meet you packaging application needs.
These stretch wrappers offer a convenient and cost-effective way to optimize your stretch wrapping applications.
Film Delivery Features
- Standard 20" Film Rolls (30" Option Available)
- Motorized Pre-stretch up to 300%, Other Ratios Available
- "Easy Load" Film Carriage with See Thru Lexan Cover
- Automatic Pallet Height Sensor with Adjustable Sensor Position
- Corner Compensating Dancing Bar and Analog Control
- Film Force Release for Easy Pull at Start of Cycle
- Automatic Film Break or Empty Roll Detection
- 1/3 HP DC Motor, with Twin Pre-Stretch Rollers
- Electronic Film Tension Control
- Automatic Film Clamping
- Pulsed Controlled Cutter
- Brushed-On Film Tail Treatment
Machine Specifications
- Production Speed: 40-50 Loads/Hour Based on Load Configuration
- Maximum Load Size: 50" L x 50" W x 80" H
- Minimum Load Size: 36" L x 36" W x 10" H
- Maximum Load Weight: 4,000 lbs
- Air Requirements: 3CFM at 80PSI
- Power Requirements: 230V, 3 Phase, 60Hz, 20 Amps
- Estimate Machine Weight: 4,800 lbs
Conveyor Features
- Electronic Soft Start/Stop
- Turntable Alignment Controlled by Proximity Sensor
- Variable Speed Controlled
- 2.5" Diameter Rollers on 3.75" Centers
- 52" Between Frame Rails
- Electric Brake System
- 1/2 HP Roller Motor with Contactor
Control Features
- PLC Micrologic with 24V Control System
- Touch Screen Operator Interface
- Auto-Height Sensing Photoeye
- Current Overload Protection
- Separate Top and Bottom Wrap
- Start/Stop and Reset Button
- Power On/Off Lockable Switch and Indicator Light
- Manual Function for Table Forward/Reverse
- Manual Carriage Up and Down
Factory Options
- Conveyor Specifications (Customizable)
- Conveyor with Variable Speed Control
- Wrap Height Extension (Add 16" Increment)
- Film Roping
- Film Cutting Device
- Dark Load Detection
- Turntable Extension
