Stretch Wrappers

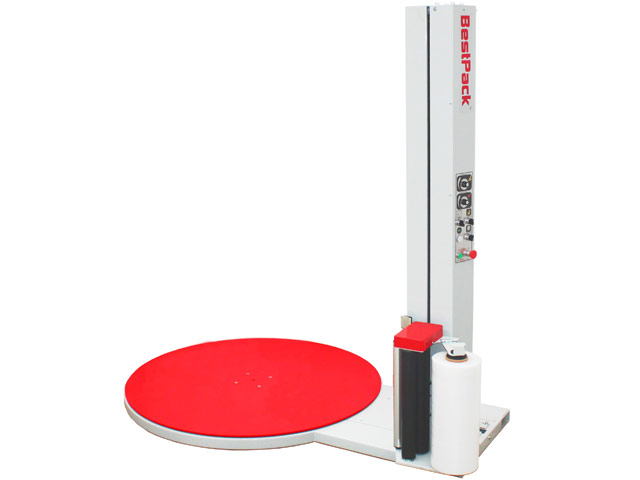

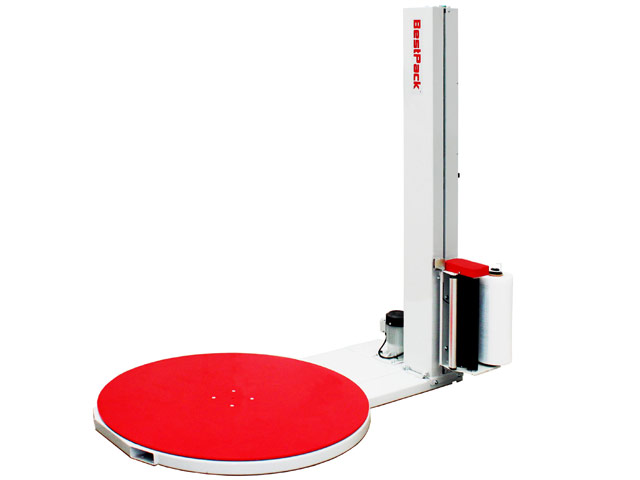

B200-W

The BestPack B200-W brings a powerful scale to our semi-automatic low-profile B200 Stretch Wrapper. Wrap and weigh all at once with the BestPack B200-W stretch wrapper, which is equipped with a digital LCD display. The B200-W Stretch Wrapper pre-stretches film up to 200% before wrapping your pallet in order to save film and increase pallet load stability.

The BestPack B200-W designed to suit a variety of light-to-heavy duty pallet wrapping applications. Users can adjust film carriage and turntable speeds, as well as other wrap pattern settings, to improve load containment.

The SW stretch wrapper line is available with integrated scale, extended wrap height, and larger turntable options. All BestPack stretch wrappers feature a heavy-duty frame and offer forklift channels for easy portability.

Low Profile
Semi-Automatic
Pre-Stretch Up To 200%

Watch Video

BestPack Stretch Wrappers, Low Profile Stretch Wrappers, High Profile Stretch Wrappers, Semi-Automatic Stretch Wrappers, Automatic Stretch Wrappers, Stretch Wrapping Machines
BestPack Stretch Wrappers, Low Profile Stretch Wrappers, High Profile Stretch Wrappers, Semi-Automatic Stretch Wrappers, Automatic Stretch Wrappers, Stretch Wrapping Machines
BestPack Stretch Wrappers, Low Profile Stretch Wrappers, High Profile Stretch Wrappers, Semi-Automatic Stretch Wrappers, Automatic Stretch Wrappers, Stretch Wrapping Machines

Film Delivery Features

  • Standard 20" Film Rolls (30" Option)
  • Roller Ratio Pre-Stretch up to 200%
  • Dual Rubber Rollers with Fixed Ratio
  • Economy Carriage with Direct Film Access
  • Automatic Pallet Height Sensor with Adjustable Sensor Position

Machine Specifications

  • Film Delivery System: Roller Ratio Pre-Stretch up to 200%
  • Production Speed: 25-35 Loads/Hour Based on Load Configuration
  • Maximum Load Size: 53" L x 53" W x 82" H
  • Maximum Load Weight: 4,000 lbs
  • Power: 110V, 60Hz, 20 Amps
  • Estimate Machine Weight: 2,000 lbs.
  • Machine Dimension: 98" L x 59" W x 86" H

Turntable / Frame Features

  • 58" Diameter, 3/8" Laser-Cut Steel Plate
  • 4,000lbs. Load Capacity
  • ANSI# 50 Chain Drive
  • Electronic Soft Start/Stop
  • 1/2HP, AC Drive Motor with Allen-Bradley VFD
  • Low Profile
  • No Maintanance, No need to Lube Drive System
  • 8 point Heavy Duty Roller Support System
  • Built-in Forklift Channels
  • Tower with Tilt-Down Hinge for Easy Shipping

Control Features

  • On/Off with Power Indicator
  • Home Position Button
  • Variable Turntable Speed 1-12 RPM
  • Variable Film Carriage Speed and Direction Controls
  • Turntable Jog Switch
  • Omron PLC with Communication Port
  • Motor Starter with Overload Reset and Electrical Overload Protection
  • Separate Top and Bottom Wrap Counters (0-9)
  • Combination Top and Bottom Wrap Counter (1-3)
  • Manual Film Tension Adjustment with Clutch Setting

Factory Options

  • Loading Ramp (For Pallet Jack Use)
  • Integrated Electronic Scale
  • Wrap Height Extension (Add 16" Increment)
  • Film Roping
  • Film Cutting Device
  • Dark Load Detection
  • Turntable Extension
